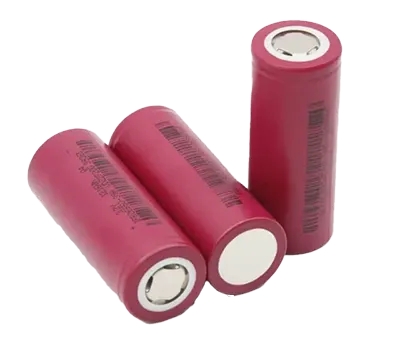

Lithium Iron Phosphate Cells

Features

Extremely safe. Excellent thermal and structural stability, no explosion, high safety performance.
Super long cycle life. 2000~6000 cycles, while only 500~900 cycles for lead acid battery.
Low self-discharge rate and no memory effect. 2% per month, while 10% for lead acid battery.
High operation voltage and power output. Nominal 3.2V, 3 times that of lead acid battery.
High energy density. Approx 200Wh/Kg, only 2/3 of the volume and 1/3 of the weight of lead acid battery.
General operation temperature range. Charge: 0~45°C; discharge: -20~60°C; storage: -20~40°C.
Green energy, no harmful metals, RoHS compliance, no pollution, friendly to the environment.

Applications

AGV/RGV/MGV automatic trucks, electric forklifts, electric stackers, fire fighting robots, robots, low-speed electric vehicles, special vehicles, testing equipment, security monitoring equipment, radio communication system, surveying instruments, UPS, emergency application, medical devices, traffic and navigation signal lamp, solar lighting, emergency lighting and car/ship starting system, power transmission and transformer station, household/commercial energy storage, etc.

Model List

Model	Nominal Voltage (V)	Nominal Capacity (mAh)	Operation Voltage	Discharge C Rate	Charge/Discharge Temperature	Length (max, mm)	Diameter (max, mm)	Weight (approx, g)
18650	3.2	1500	2.0V~3.65V	1C	0~45°C / -20~60°C	65.7	18.7	40
18650	3.2	1800	2.0V~3.65V	2C	0~45°C / -20~60°C	65.7	18.7	44
26650	3.2	2500	2.0V~3.65V	50C	-20~60°C / -40~60°C	65.7	26.7	104
26650	3.2	3400	2.0V~3.65V	3C	-20~45°C / -40~60°C	65.7	26.7	110
26650	3.2	3300	2.0V~3.65V	30C	0~45°C / -20~60°C	65.7	26.7	110
26650	3.2	3800	2.0V~3.65V	30C	0~45°C / -20~60°C	65.7	26.7	110
32700	3.2	5000	2.0V~3.65V	3C	0~45°C / -20~60°C	70.7	32.7	140
32700	3.2	6000	2.0V~3.65V	1C	0~45°C / -20~60°C	70.7	32.7	147
