12V Battery Pack

The 12V battery pack is constructed by connecting multiple cells in series to achieve 12V output. It serves as the optimal replacement for traditional lead acid batteries, which suffer from low energy density and short cycle life. As lead, the primary material in these batteries, is a toxic heavy metal, they pose significant environmental and health risks. In contrast, modern lithium ion batteries offer higher energy density, greater efficiency, and environmental friendliness. With increasingly stringent environmental regulations worldwide, lead acid batteries are being progressively replaced by lithium ion solutions.

Key Benefits

  • High energy density. 3-5 times energy density of lead acid batteries with the same volume.
  • Super long life. Its calendar life is more than 8 years, 4-8 times longer than lead acid batteries.
  • Safe and convenient. Inbuilt BMS ensures the battery safety and also realize other functional applications.
  • Maintenance free. Can be connected in parallel and series to get higher power.
  • Fast charging & discharging, which is greatly reduces the charging time.
  • Low self discharge rate, no memory effect. Approx 2%/month self discharge rate at room temp.
  • LED display indicates battery capacity and when the battery should be charged or fully charged.
  • Green energy. No heavy metals as lead, cadmium, Hg and friendly to the environment.

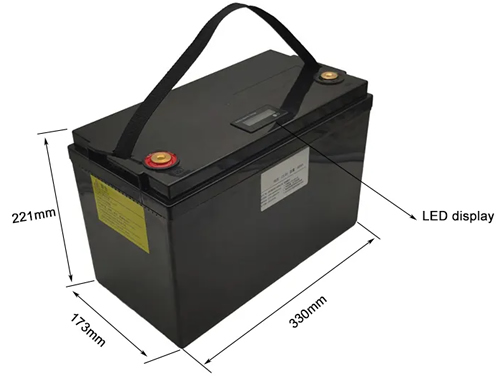

lead acid replacement battery dimensions

Applications

Solar/wind power system, city grid ESS(On/Off), community and family, RV motorhome, golf carts battery, boat marine yachts, electric skateboard, vehicle, telecom base, CATV system, computer server center, medical instrument, military equipment, security and electronics, mobile POS, mining light, torch, LED light, emergency light, LED backup, engine starting battery etc.

Model Nominal Voltage Nominal Capacity Continuous Charge Continuous Discharge Chemistry Size (H*W*L) Weight Housing
12V40Ah 12.8V 40Ah 40A max, 14.6V max 40A max, 10V cutoff LFP 220*128*197mm 6.0Kg PVC, ABS, Metal
12V45Ah 12.8V 45Ah 40A max, 14.6V max 40A max, 10V cutoff LFP 222*133*238mm 6.0Kg PVC, ABS, Metal
12V60Ah 12.8V 60Ah 60A max, 14.6V max 60A max, 10V cutoff LFP 221*175*260mm 9.5Kg PVC, ABS, Metal
12V70Ah 12.8V 70Ah 60A max, 14.6V max 60A max, 10V cutoff LFP 220*174*306mm 10.5Kg PVC, ABS, Metal
12V80Ah 12.8V 80Ah 80A max, 14.6V max 80A max, 10V cutoff LFP 215*168*307mm 11.0Kg PVC, ABS, Metal
12V90Ah 12.8V 90Ah 90A max, 14.6V max 100A max, 10V cutoff LFP 215*168*307mm 11.5Kg PVC, ABS, Metal
12V100Ah 12.8V 100Ah 100A max, 14.6V max 100A max, 10V cutoff LFP 221*173*330mm 12.0Kg PVC, ABS, Metal
12V120Ah 12.8V 120Ah 100A max, 14.6V max 100A max, 10V cutoff LFP 238*173*406mm 15.0Kg PVC, ABS, Metal
12V150Ah 12.8V 150Ah 100A max, 14.6V max 100A max, 10V cutoff LFP 240*170*484mm 17.0Kg PVC, ABS, Metal
12V200Ah 12.8V 200Ah 100A max, 14.6V max 200A max, 10V cutoff LFP 222*238*522mm 23.0Kg PVC, ABS, Metal
12V250Ah 12.8V 250Ah 100A max, 14.6V max 200A max, 10V cutoff LFP 224*267*520mm 24.0Kg PVC, ABS, Metal
12V300Ah 12.8V 300Ah 100A max, 14.6V max 200A max, 10V cutoff LFP 224*267*520mm 27.0Kg PVC, ABS, Metal
12V400Ah 12.8V 400Ah 100A max, 14.6V max 250A max, 10V cutoff LFP 224*267*520mm 40.0Kg PVC, ABS, Metal
