500mAh -

This category of lithium polymer battery has a capacity range of less than 500mAh. Safety circuits and terminations are optional and customizable. Lithium polymer battery, also known as li-po battery, li-polymer battery, li-ion polymer battery and pouch battery, works on lithium ion technology with a polymer electrolyte instead of the traditional liquid electrolyte. By it the battery can be made thinner, lighter, safer and easily shaped to fit the device it will power. Due to the higher energy density and longer lifespan than other rechargeable batteries lithium polymer batteries are often used in applications where dimensions and weight are crucial factors, such as portable devices, mobile electronics, wearables, robots, wirless communication, electric vehicles etc.

Key Benefits

  • High energy density, thinner and lighter. 300Wh/Kg and even higher, 3~4 times of nickel metal hydride battery.
  • High working voltage. Operating voltage range 4.2~3.0V, 3 times of nickel metal hydride battery.
  • Great safety and flexible design. Softcase packaging, easy design, no explosion even in the worst case.
  • Long cycle life, more than 800 cycles, low self discharge rate, less than 2%/month self discharge rate.
  • Wide operation temperature range. charge: 0~45°C; discharge: -20~60°C; storage: -20~40°C.
  • Thousands of standard models available and custom design tailored to meet specific requirements.
  • Green energy, no harmful metals, RoHS compliance, no pollution, friendly to the environment.

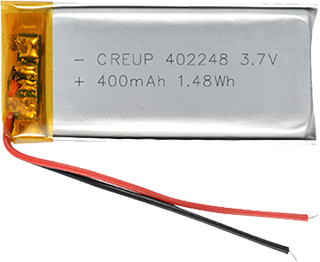

lithium polymer battery 402248

Applications

Internet of Things(IoT), mobile electronics, smart devices, robot, wearable, medical/healthcare, wireless communication, GPS tracking, lighting, safety & defence etc.

Model Nominal Voltage (V) Nominal Capacity (mAh) Length (max, mm) Width (max, mm) Height (max, mm) Weight (approx, g)
250834 3.7 40 34.5 8.60 2.6 1.0
300912 3.7 17 11.5 9.00 3.1 0.4
340923 3.7 40 23.0 9.30 3.4 0.9
300937 3.7 68 37.5 9.5 3.0 1.5
501013 3.7 25 14.0 10.3 5.0 0.6
501027 3.7 80 27.5 10.3 5.0 1.7
301030 3.7 50 30.5 10.8 3.0 1.2
401030 3.7 80 30.5 10.8 3.8 1.7
431035 3.7 110 35.5 10.5 4.3 2.2
701040 3.7 230 40.5 10.0 7.0 4.4
331055 3.7 120 55.5 10.5 3.5 2.5
401055 3.7 160 55.5 10.5 4.0 3.2
371058 3.7 160 58.5 10.8 3.7 3.3
491120 3.7 70 20.0 11.5 4.9 1.4
401135 3.7 110 32.5 12.0 4.0 2.2
361215 3.7 40 15.5 12.5 3.6 0.9
581215 3.7 50 15.5 12.5 5.8 1.1
401218 3.7 50 18.0 12.0 4.0 1.1
501218 3.7 60 18.0 12.0 5.0 1.3
401221 3.7 70 21.0 12.5 4.2 1.5
301220 3.7 40 21.0 12.5 3.1 0.9
601220 3.7 100 20.8 12.0 6.3 2.0
501221 3.7 75 21.0 12.2 5.0 1.5
361226 3.7 75 25.5 12.0 3.5 1.6
501235 3.7 150 35.0 12.5 5.0 3.0
401230 3.7 110 30.3 12.8 4.0 1.9
501230 3.7 130 30.5 12.5 5.0 2.6
601230 3.7 160 30.5 12.5 6.2 3.1
401235 3.7 120 35.5 12.5 4.0 2.4
601235 3.7 200 35.5 12.5 6.0 3.8
251235 3.7 70 35.5 12.5 2.7 1.6
551235 3.7 180 35.5 12.5 5.7 3.5
701235 3.7 220 35.5 12.5 7.0 4.2
651235 3.7 210 36.0 12.0 6.5 4.0
501240 3.7 170 40.5 12.3 5.2 3.3
701240 3.7 260 40.5 12.5 6.6 4.9
541240 3.7 200 40.5 12.5 5.4 3.9
711240 3.7 260 41.0 12.5 7.1 4.9
451245 3.7 200 45.5 12.5 4.7 3.9
501245 3.7 200 45.5 12.5 5.0 3.9
701245 3.7 300 45.5 12.5 6.6 5.7
551245 3.7 250 46.0 12.0 5.9 4.8
631245 3.7 280 45.5 12.5 6.3 5.3
601245 3.7 280 45.0 12.0 6.0 5.3
651248 3.7 330 48.5 12.5 6.5 6.2
501259 3.8 400 59.0 12.0 5.0 7.5
601265 3.7 450 65.0 12.3 6.2 8.4
301317 3.7 40 16.0 12.5 3.5 0.9
301320 3.7 50 20.0 13.5 3.2 1.1
361320 3.7 68 20.5 13.5 3.8 1.4
551320 3.7 90 20.5 13.2 5.5 1.8
601320 3.7 70 20.5 13.0 6.0 1.5
461324 3.7 100 23.5 13.0 4.6 2.0
301341 3.7 130 41.5 13.5 3.0 2.7
801350 3.7 500 50.5 13.7 8.2 9.2
451350 3.7 300 50.5 13.5 4.7 5.7
551358 3.7 400 58.5 13.5 5.5 7.5
681362 3.7 530 62.0 13.5 6.8 9.8
451416 3.7 50 16.0 14.5 4.5 1.1
551417 3.7 65 17.8 14.5 5.5 1.4
601417 3.7 70 17.8 14.5 6.0 1.5
811417 3.7 100 17.8 14.5 8.2 2.0
501417 3.7 70 17.5 14.5 5.0 1.5
411116 3.7 40 16.5 12 4.1 0.9
251419 3.7 35 19.5 14.5 2.5 0.8
551419 3.7 100 19.5 14.5 5.5 2.0
391419 3.7 65 19.5 14.5 3.9 1.4
501419 3.7 80 19.5 14.5 5.0 1.6
401421 3.7 80 22.0 14.0 4.1 1.7
451422 3.7 95 22.5 14.3 4.5 1.9
511422 3.7 110 22.5 14.5 5.1 2.2
301423 3.7 65 23.1 14.5 3.0 1.4
401425 3.7 100 25.0 14.3 4.1 2.0
501425 3.7 140 25.0 14.5 5.0 2.7
341425 3.7 85 25.0 14.0 3.4 1.8
301425 3.7 80 25.0 14.0 3.0 1.7
421427 3.7 110 27.0 14.5 4.3 2.2
301428 3.7 80 28.5 14.5 3.1 1.7
401428 3.7 110 28.5 14.0 4.0 2.2
701429 3.7 220 29.8 14.5 7.3 4.2
401429 3.7 130 29.5 14.5 4.2 2.6
451430 3.7 150 30.5 14.5 4.6 3.0
651430 3.7 210 30.5 14.5 6.5 4.0
501430 3.7 170 30.5 14.5 5.2 3.3
401430 3.7 145 30.5 14.3 4.1 2.9
551430 3.7 180 30.5 14.3 5.5 3.5
501435 3.7 200 35.5 14.5 5.0 3.9
701435 3.7 300 35.5 14.5 7.2 5.6
631435 3.7 250 35.8 14.0 6.3 4.7
351435 3.7 130 35.5 14.5 3.5 2.6
701439 3.7 320 39.5 14.5 7.1 6.0
491442 3.7 250 42.5 14.5 4.9 4.8
451442 3.7 250 42.0 13.7 4.6 4.8
601447 3.7 350 47.5 14.0 6.0 6.6
601450 3.7 395 50.5 14.5 6.0 6.6
701450 3.7 480 50.5 14.0 7.0 8.9
651452 3.7 420 52.5 14.5 6.5 7.8
801452 3.7 500 52.5 14.5 8.0 9.2
681454 3.7 450 54.5 14.5 6.8 8.4
401471 3.7 360 71.5 14.5 4.0 6.9
401515 3.7 48 15.5 15.5 4.2 1.1
661515 3.7 85 15.5 15.0 6.6 1.7
401515 3.7 50 15.5 15.5 4.2 1.1
531518 3.7 85 18.5 15.5 5.3 1.7
301520 3.7 40 20.5 15.5 3.0 0.9
571522 3.7 210 22.5 15.5 8.7 4.0
301524 3.7 70 25.0 15.0 3.0 1.5
401525 3.7 100 25.5 15.5 4.1 2.0
501528 3.7 150 28.5 15.2 5.0 2.9
451528 3.7 140 28.5 15.5 4.7 2.8
301528 3.7 100 28.5 15.0 3.1 2.1
601537 3.7 260 37.8 15.5 6.0 4.9
501537 3.7 250 37.5 16.0 5.0 4.8
401550 3.7 280 50.5 15.5 4.2 5.4
301550 3.7 185 50.5 15.5 3.0 3.7
451575 3.7 450 73.5 15.4 4.5 8.6
481624 3.7 120 23.50 16.5 4.5 2.0
801624 3.7 200 22.5 16.2 8.2 3.8
351624 3.7 90 24.5 16.5 3.5 1.9
501630 3.7 200 30.5 16.5 5.0 3.9
451635 3.7 200 35.5 16.5 4.5 3.9
351635 3.7 140 35.5 16.5 3.5 2.8
501643 3.7 280 43.5 16.5 5.0 5.4
501646 3.7 300 46.5 16.5 5.0 5.7
521657 3.7 420 57.0 16.8 5.2 7.9
351724 3.7 115 24.5 17.5 3.5 2.3
651725 3.7 220 25.5 17.5 6.5 4.2
321725 3.7 100 25.5 17.1 3.2 2.1
401730 3.7 160 30.5 17.5 4.1 3.2
601735 3.7 300 35.0 17.0 6.0 5.6
501740 3.7 300 40.5 17.2 5.2 5.7
351752 3.7 280 52.0 17.5 3.5 5.5
601818 3.7 135 18.5 18.0 6.0 2.6
451834 3.7 220 34.5 18.5 4.5 4.3
401838 3.7 240 39.5 18.3 4.0 4.7
461860 3.7 480 60.5 18.5 4.6 9.0
501920 3.7 145 20.5 19.5 5.0 2.8
601945 3.7 450 44.5 19.5 6.0 8.4
602020 3.7 180 21.8 20.5 6.0 3.5
402023 3.7 125 23.5 20.5 4.2 2.5
402025 3.7 150 25.0 20.5 4.0 2.5
452025 3.7 180 25.0 20.5 4.5 2.5
502025 3.7 210 25.8 20.5 5.0 4.0
502028 3.7 220 29.0 20.5 5.2 4.2
302030 3.7 130 30.5 20.5 3.0 2.7
402030 3.7 180 30.5 20.5 4.0 3.5
462030 3.7 220 30.5 20.5 4.6 4.3
902030 3.7 480 30.5 20.5 9.0 8.8
602030 3.7 300 31.0 20.5 6.0 5.7
602033 3.7 400 34.0 21.0 6.0 7.4
502035 3.7 240 35.8 20.5 5.2 4.6
402035 3.7 240 35.5 20.5 4.2 4.6
602040 3.7 420 40.5 20.5 6.0 7.8
552044 3.7 470 44.5 20.5 5.3 8.8
452048 3.7 400 48.5 20.5 4.5 7.6
342060 3.7 400 60.5 20.5 3.4 7.7
352065 3.7 400 65.5 20.5 3.7 7.7
402227 3.7 180 26.5 22.5 4.1 3.5
502238 3.7 410 38.5 22.2 5.1 7.7
552240 3.7 450 40.5 22.5 5.5 8.4
502248 3.7 450 48.5 22.5 5.0 8.5
402248 3.7 400 48.5 22.5 4.0 7.6
302323 3.7 130 23.5 23.5 3.0 2.6
502325 3.7 250 25.5 23.5 5.0 4.8
352328 3.7 180 28.0 23.3 3.3 3.6
422328 3.7 220 28.5 23.0 4.2 4.3
602425 3.7 255 25.5 24.5 6.0 4.9
402438 3.7 350 38.5 23.5 4.0 6.6
402525 3.7 200 25.5 25.5 4.0 3.9
502530 3.7 330 30.5 25.5 5.2 6.2
602530 3.7 450 30.5 25.5 6.0 8.3
502533 3.7 370 33.5 25.5 5.2 7.0
602533 3.7 450 33.5 25.5 6.0 8.4
402533 3.7 240 33.5 25.5 4.2 4.7
502535 3.7 380 35.5 25.0 5.0 7.2
552535 3.7 430 34.5 25.5 5.4 8.0
502628 3.7 330 28.5 26.5 5.0 6.2
452634 3.7 380 34.0 25.6 4.7 7.2
562725 3.7 320 25.5 26.8 5.6 6.0
502728 3.7 400 28.5 27.5 5.1 7.5
602730 3.7 400 31.0 27.5 6.0 7.5
502730 3.7 360 30.8 27.5 5.0 6.8
402730 3.7 300 30.5 27.3 4.0 5.7
382738 3.7 350 38.5 27.5 3.8 6.7
402742 3.7 400 42.5 27.5 3.9 7.6
402745 3.7 480 45.5 27.5 4.0 9.1
502834 3.7 420 34.5 28.5 5.0 7.9
453030 3.7 360 30.5 30.5 4.4 6.8
503030 3.7 400 30.5 30.5 5.0 7.5
353030 3.7 250 30.5 30.5 3.5 4.9
503035 3.7 500 35.8 30.5 5.2 9.3
303035 3.7 280 35.5 30.5 3.2 5.5
403035 3.7 380 35.5 30.5 4.0 7.2
203040 3.7 210 40.5 36.0 2.5 4.4
503040 3.7 500 40.5 30.5 5.0 9.4
353048 3.7 500 48.5 30.5 3.7 9.5
383436 3.7 400 36.5 34.5 3.8 7.6
403438 3.7 470 38.5 34.0 3.9 8.9
363444 3.7 500 44.5 34.5 3.6 9.5
353445 3.7 470 44.8 34.5 3.4 9.0
333448 3.7 500 48.5 34.5 3.3 9.6
303450 3.7 500 50.5 34.5 3.2 9.6
