36V Battery Pack

The 36V battery pack is constructed by connecting multiple cells in series to achieve 36V output. It comes with an inbult safety circuit, output terminals, simple PVC shrink wraps or ABS platic/metal housing. Constructing a battery pack involves connecting cells in series, parallel, or a combination of both. By combining several individual cells, a battery pack can deliver higher voltage, capacity, or both than a single cell. Designs are customizable.

Key Benefits

  • High energy density. 3-5 times energy density of lead acid batteries with the same volume.
  • Super long life. Its calendar life is more than 8 years, 4-8 times longer than lead acid batteries.
  • Safe and convenient. Inbuilt BMS ensures the battery safety and also realize other functional applications.
  • Maintenance free. Can be connected in parallel and series to get higher power.
  • Fast charging & discharging, which is greatly reduces the charging time.
  • Low self discharge rate, no memory effect. Approx 2%/month self discharge rate at room temp.
  • Green energy. No heavy metals as lead, cadmium, Hg and friendly to the environment.

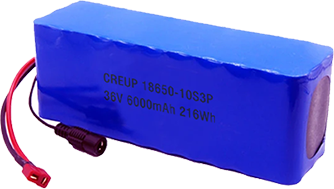

36V lithium ion battery pack

Applications

Solar/wind power system, city grid ESS(On/Off), community and family, RV motorhome, golf carts battery, boat marine yachts, electric skateboard, vehicle, telecom base, CATV system, computer server center, medical instrument, military equipment, security and electronics, mobile POS, mining light, torch, LED light, emergency light, LED backup, engine starting battery etc.

Model Nominal Voltage Nominal Capacity Continuous Charge Continuous Discharge Chemistry Size (H*W*L) Weight Housing
36V10Ah 36V 10Ah 2A max, 42V max 15A max, 30V cutoff NMC 392*110*76mm 3.4Kg PVC, ABS, Metal
36V6.6Ah 36V 6.6Ah 4A max, 42V max 15A max, 30V cutoff NMC 116*24*388mm 1.6Kg PVC, ABS, Metal
36V8.8Ah 36V 8.8Ah 1.76A max, 42V max 15A max, 30V cutoff NMC 407*90*75mm 2.9Kg PVC, ABS, Metal
36V11Ah 36V 11Ah 2A max, 42V max 15A max, 30V cutoff NMC 410*97*105mm 3.5Kg PVC, ABS, Metal
36V13Ah 36V 13Ah 2.6A max, 42V max 20A max, 30V cutoff NMC 443*162*62mm 3.8Kg PVC, ABS, Metal
36V72Ah 36V 72Ah 14.4A max, 42V max 60A max, 30V cutoff NMC 450*250*185mm 21.3Kg PVC, ABS, Metal
38.4V10Ah 38.4V 10Ah 2A max, 43.2V max 15A max, 30V cutoff LFP 427*150*65mm 5.3Kg PVC, ABS, Metal
38.4V12Ah 38.4V 12Ah 2.5A max, 43.2V max 30A max, 30V cutoff LFP 418*160*83mm 6.0Kg PVC, ABS, Metal
38.4V12Ah 38.4V 12Ah 2.4A max, 43.2V max 50A max, 30V cutoff LFP 250*143*210mm 7.3Kg PVC, ABS, Metal
38.4V28.8Ah 38.4V 28.8Ah 6A max, 43.2V max 30A max, 30V cutoff LFP 250*143*209mm 12Kg PVC, ABS, Metal
38.4V100Ah 38.4V 100Ah 20A max, 43.2V max 60A max, 30V cutoff LFP 534*279*290mm 60Kg PVC, ABS, Metal
