This category of lithium polymer battery has a capacity range of from 5001mAh to 10000mAh. Safety circuits and terminations are optional and customizable. Lithium polymer battery, also known as li-po battery, li-polymer battery, li-ion polymer battery and pouch battery, works on lithium ion technology with a polymer electrolyte instead of the traditional liquid electrolyte. By it the battery can be made thinner, lighter, safer and easily shaped to fit the device it will power. Due to the higher energy density and longer lifespan than other rechargeable batteries lithium polymer batteries are often used in applications where dimensions and weight are crucial factors, such as portable devices, mobile electronics, wearables, robots, wirless communication, electric vehicles etc.
Internet of Things(IoT), mobile electronics, smart devices, robot, wearable, medical/healthcare, wireless communication, GPS tracking, lighting, safety & defence etc.
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Length (max, mm) | Width (max, mm) | Height (max, mm) | Weight (approx, g) |
|---|---|---|---|---|---|---|
| 114379 | 3.7 | 5500 | 79.8 | 43.3 | 11.1 | 108.0 |
| 114569 | 3.7 | 5200 | 69.8 | 45.3 | 11.1 | 118 |
| 104671 | 3.7 | 5050 | 71.8 | 46.3 | 10.1 | 108.0 |
| 114690 | 3.7 | 7200 | 90.8 | 46.3 | 11.1 | 157.0 |
| 125083 | 3.7 | 6000 | 83.8 | 50.3 | 12.1 | 133.0 |
| 105082 | 3.7 | 6000 | 82.8 | 50.3 | 10.1 | 162.0 |
| 105283 | 3.7 | 5500 | 83.8 | 52.3 | 10.1 | 108.0 |
| 105378 | 3.7 | 6400 | 78.8 | 53.3 | 10.1 | 1.5 |
| 115373 | 3.7 | 6000 | 73.8 | 53.3 | 11.1 | 115.0 |
| 105478 | 3.7 | 6000 | 78.8 | 54.3 | 10.1 | 162.0 |
| 205667 | 3.7 | 6500 | 67.8 | 56.3 | 2.1 | 151.0 |
| 105775 | 3.7 | 6000 | 75.8 | 57.3 | 10.1 | 152.0 |
| 106090 | 3.7 | 7000 | 90.8 | 60.3 | 10.1 | 161.0 |
| 126090 | 3.7 | 8000 | 90.8 | 60.3 | 12.1 | 182.0 |
| 1160106 | 3.7 | 9800 | 106.8 | 60.3 | 11.1 | 176.0 |

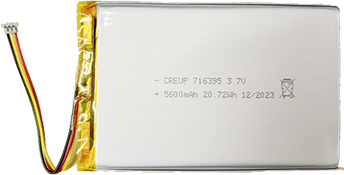

| 716395 | 3.7 | 5600 | 99.0 | 64.0 | 7.2 | 102.0 |
| 576485 | 3.7 | 5200 | 85.8 | 64.3 | 5.8 | 118.0 |
| 806489 | 3.7 | 7000 | 89.8 | 64.3 | 8.1 | 161.0 |
| 106588 | 3.7 | 8000 | 88.8 | 65.3 | 10.1 | 182.0 |
| 1165115 | 3.7 | 10000 | 115.8 | 65.3 | 11.1 | 194 |
| 6865129 | 3.7 | 8000 | 129.8 | 65.3 | 6.9 | 182.0 |
| 8666100 | 3.7 | 9200 | 100.8 | 66.3 | 8.7 | 170.0 |
| 8567100 | 3.7 | 7000 | 100.8 | 67.3 | 8.6 | 161.0 |
| 8870129 | 3.7 | 10000 | 129.8 | 70.3 | 8.9 | 212.0 |
| 1070100 | 3.7 | 10000 | 100.8 | 70.3 | 10.1 | 188.0 |
| 837585 | 3.7 | 8000 | 85.8 | 75.3 | 8.4 | 182.0 |
| 709090 | 3.7 | 9400 | 90.8 | 90.3 | 7.1 | 170.0 |
