24V Battery Pack

The 24V battery pack is constructed by connecting multiple cells in series to achieve 24V output. It comes with an inbult safety circuit, output terminals, simple PVC shrink wraps or ABS platic/metal housing. Constructing a battery pack involves connecting cells in series, parallel, or a combination of both. By combining several individual cells, a battery pack can deliver higher voltage, capacity, or both than a single cell. Designs are customizable.

Key Benefits

  • High energy density. 3-5 times energy density of lead acid batteries with the same volume.
  • Super long life. Its calendar life is more than 8 years, 4-8 times longer than lead acid batteries.
  • Safe and convenient. Inbuilt BMS ensures the battery safety and also realize other functional applications.
  • Maintenance free. Can be connected in parallel and series to get higher power.
  • Fast charging & discharging, which is greatly reduces the charging time.
  • Low self discharge rate, no memory effect. Approx 2%/month self discharge rate at room temp.
  • Green energy. No heavy metals as lead, cadmium, Hg and friendly to the environment.

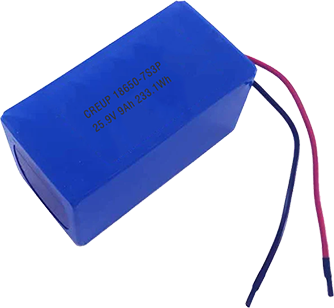

24V lithium ion battery pack

Applications

Solar/wind power system, city grid ESS(On/Off), community and family, RV motorhome, golf carts battery, boat marine yachts, electric skateboard, vehicle, telecom base, CATV system, computer server center, medical instrument, military equipment, security and electronics, mobile POS, mining light, torch, LED light, emergency light, LED backup, engine starting battery etc.

Model Nominal Voltage Nominal Capacity Continuous Charge Continuous Discharge Chemistry Size (H*W*L) Weight Housing
25.9V49.5Ah 25.9V 49.5Ah 10A max, 29.4V max 50A max, 21V cutoff NMC 262*167*212mm 9.3Kg PVC, ABS, Metal
25.9V11Ah 25.9V 11Ah 2A max, 29.4V max 15A max, 21V cutoff NMC 335*150*165mm 3Kg PVC, ABS, Metal
25.6V14Ah 25.6V 14Ah 2.8A max, 28.8V max 30A max, 20V cutoff LFP 440*110*76mm 4.6Kg PVC, ABS, Metal
25.6V30Ah 25.6V 30Ah 6A max, 28.8V max 40A max, 20V cutoff LFP 483*208*90mm 11.1Kg PVC, ABS, Metal
25.6V48Ah 25.6V 48Ah 9.9A max, 28.8V max 60A max, 20V cutoff LFP 260*160*247mm 14.5Kg PVC, ABS, Metal
25.6V50Ah 25.6V 50Ah 10A max, 28.8V max 25A max, 20V cutoff LFP 340*190*150mm 13.6Kg PVC, ABS, Metal
25.6V50Ah 25.6V 50Ah 10A max, 28.8V max 50A max, 20V cutoff LFP 325*200*135mm 13.8Kg PVC, ABS, Metal
25.6V60Ah 25.6V 60Ah 12A max, 28.8V max 60A max, 20V cutoff LFP 375*178*170mm 18.4Kg PVC, ABS, Metal
25.6V60Ah 25.6V 60Ah 12A max, 28.8V max 35A max, 20V cutoff LFP 300*245*170mm 16.9Kg PVC, ABS, Metal
25.6V64Ah 25.6V 64Ah 13A max, 28.8V max 60A max, 20V cutoff LFP 250*148*283mm 19.3Kg PVC, ABS, Metal
25.6V70Ah 25.6V 70Ah 14A max, 28.8V max 70A max, 20V cutoff LFP 325*430*86mm 16.5Kg PVC, ABS, Metal
25.6V70Ah 25.6V 70Ah 14A max, 28.8V max 20A max, 20V cutoff LFP 490*365*90mm 23.2Kg PVC, ABS, Metal
25.6V75Ah 25.6V 75Ah 15A max, 28.8V max 60A max, 20V cutoff LFP 580*160*126mm 23Kg PVC, ABS, Metal
25.6V80Ah 25.6V 80Ah 16A max, 28.8V max 35A max, 20V cutoff LFP 330*280*200mm 21Kg PVC, ABS, Metal
25.6V100Ah 25.6V 100Ah 20A max, 28.8V max 100A max, 20V cutoff LFP 340*230*230mm 31Kg PVC, ABS, Metal
25.6V180Ah 25.6V 180Ah 36A max, 28.8V max 140A max, 20V cutoff LFP 598*392*175mm 64.7Kg PVC, ABS, Metal
25.6V200Ah 25.6V 200Ah 40A max, 28.8V max 130A max, 20V cutoff LFP 600*325*300mm 64.7Kg PVC, ABS, Metal
