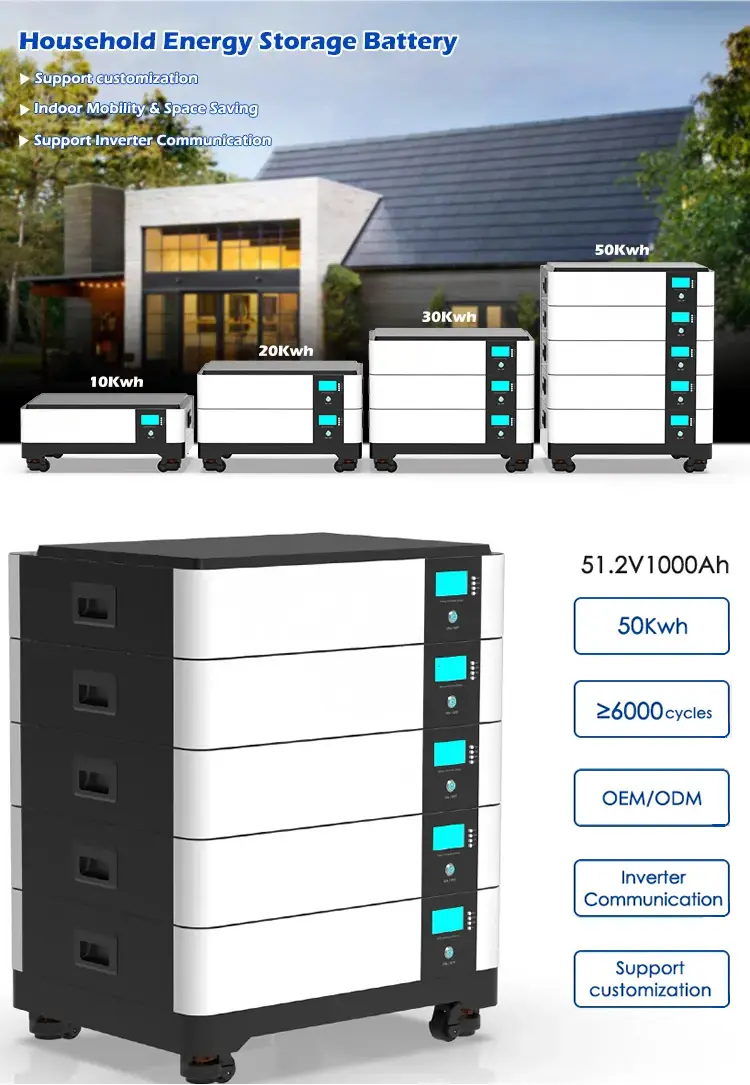

Stackable energy storage system (ESS) is modular with 5kWh increments, providing a capacity range of 10~50 kWh per stack. This allows easy future expansion, indoor mobility and space saving. It is built by lifepo4 batteries with high energy density and long cycle life and can support communication functions. With multiple mounting ways it is space-saving for all kinds of installation. To serve evolving load requirement, modular design can fit your energy demand of today and tomorrow. They are best for households with flexible space configurations or basements, those seeking modularity and expandability.
The built-in BMS ensures that the battery is protected from improper handling and switches it in case of undervoltage or overload, and turns on automatically as soon as the problem is fixed. It supports all in one smart communication functions. RS485, RS232 and CAN-BUS communication protocols are supported and the communication content is customizable. Customers can easily monitor the batteries through the host software and check the working status of each cell and set specific parameters on the computer.

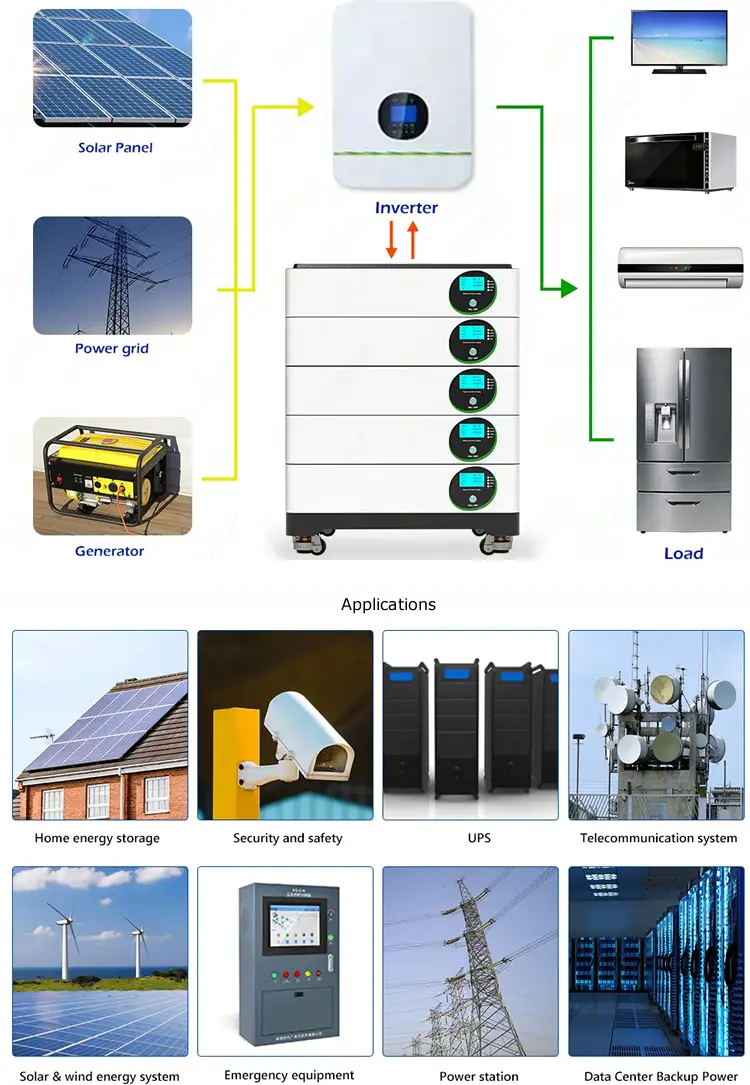

Home energy storage, industrial energy storage, solar/wind power generation, UPS power supply, communication base station, computer server center, mobile energy storage, medical instrument, security and electronics, emergency light, solar street lamp, RV energy storage etc.
| Items | Specifications | |||||||
|---|---|---|---|---|---|---|---|---|
| Model | S51.2V100Ah | S51.2V200Ah | ||||||
| Energy (Kwh) | 5 | 10 | ||||||
| Nominal Voltage (V) | 51.2 | 51.2 | ||||||
| Nominal Capacity (Ah) | 100 | 200 | ||||||
| Charge Current (A) | 100 | 200 | ||||||
| Charge Cutoff Voltage (V) | 58.4±0.2 | 58.4±0.2 | ||||||
| Discharge Current (A) | 100 | 200 | ||||||
| Discharge Cutoff Voltage (V) | 36.8±0.2 | 36.8±0.2 | ||||||
| Battery Chemistry | LiFePO4 | LiFePO4 | ||||||
| Display | LCD | LCD | ||||||
| Terminal | M8 | M8 | ||||||
| Case Material | Metal Box | Metal Box | ||||||
| Communication Mode | RS485/CAN | RS485/CAN | ||||||
| Operation Temp. | Charge 0-45℃, Discharge -5-55℃ | Charge 0-45℃, Discharge -5-55℃ | ||||||
| Cycle Life | ≥ 6000 cycles, 80% DOD | ≥ 6000 cycles, 80% DOD | ||||||
| Color | White | Black, White | ||||||
| Accessories | Pulley base, parallel cables, communication cables, user manual | Pulley base, parallel cables, communication cables, user manual | ||||||
| Stackable Energy (Kwh) | 5 | 10 | 15 | 25 | 10 | 20 | 30 | 50 |
| Dimensions (mm) | 640*450*180 | 640*450*345 | 640*450*510 | 640*450*840 | 690*590*287 | 640*450*430 | 640*450*580 | 640*450*880 |
| Weight (Kg) | 60 | 108.5 | 157.5 | 255.5 | 91.5 | 168 | 244.5 | 398 |
