3001mAh-5000mAh

This category of lithium polymer battery has a capacity range of from 3001mAh to 5000mAh. Safety circuits and terminations are optional and customizable. Lithium polymer battery, also known as li-po battery, li-polymer battery, li-ion polymer battery and pouch battery, works on lithium ion technology with a polymer electrolyte instead of the traditional liquid electrolyte. By it the battery can be made thinner, lighter, safer and easily shaped to fit the device it will power. Due to the higher energy density and longer lifespan than other rechargeable batteries lithium polymer batteries are often used in applications where dimensions and weight are crucial factors, such as portable devices, mobile electronics, wearables, robots, wirless communication, electric vehicles etc.

Key Benefits

  • High energy density, thinner and lighter. 300Wh/Kg and even higher, 3~4 times of nickel metal hydride battery.
  • High working voltage. Operating voltage range 4.2~3.0V, 3 times of nickel metal hydride battery.
  • Great safety and flexible design. Softcase packaging, easy design, no explosion even in the worst case.
  • Long cycle life, more than 800 cycles, low self discharge rate, less than 2%/month self discharge rate.
  • Wide operation temperature range. charge: 0~45°C; discharge: -20~60°C; storage: -20~40°C.
  • Thousands of standard models available and custom design tailored to meet specific requirements.
  • Green energy, no harmful metals, RoHS compliance, no pollution, friendly to the environment.

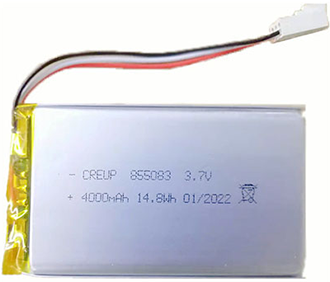

lithium polymer battery 855083

Applications

Internet of Things(IoT), mobile electronics, smart devices, robot, wearable, medical/healthcare, wireless communication, GPS tracking, lighting, safety & defence etc.

Model Nominal Voltage (V) Nominal Capacity (mAh) Length (max, mm) Width (max, mm) Height (max, mm) Weight (approx, g)
802030 3.7 4200 30.5 20.5 7.8 7.8
7530134 3.7 3500 135.0 30.0 7.5 62.6
8030160 3.7 4100 160.5 30.0 7.8 72.8
8530134 3.7 3800 134.5 30.5 8.5 68.0
103496 3.7 3800 96.8 34.5 10.0 67.9
114169 3.7 3500 69.5 41.5 11.0 62.6
854275 3.7 3100 75.5 42.0 8.7 55.7
114275 3.7 4000 75.0 42.0 11.0 71.4
6842113 3.7 3600 113.5 42.5 6.8 71.2
804388 3.7 3480 88.5 43.0 7.9 62.5
4546146 3.7 3400 146.0 46.0 4.6 60.9
104775 3.7 4400 75.2 47.0 10.0 78.5
8047109 3.7 5000 109.5 47.0 8.0 194.2
8647109 3.7 5000 109.5 47.5 8.6 194.2
6047109 3.7 3800 109.5 47.5 6.2 147.7
964771 3.7 3800 72.0 47.5 9.6 68.0
854775 3.7 3900 75.5 48.0 8.5 69.8
954983 3.7 4700 83.8 49.5 9.6 83.9
785080 3.7 3950 80.0 50.0 7.8 70.8
725080 3.7 3500 80.8 50.0 7.2 63.0
675098 3.7 4000 98.0 50.0 6.7 72.0
855083 3.7 4000 83.5 50.5 8.6 73.5
105068 3.7 3900 68.5 50.5 10.0 69.8
655081 3.7 3200 81.5 50.5 6.5 57.8
805085 3.7 3800 85.5 50.5 8.0 68.3
705085 3.7 3400 85.5 50.5 7.2 61.3
105085 3.7 5000 85.5 50.5 10.0 89.2
885085 3.7 4200 85.5 50.5 8.8 75.3
955085 3.7 4800 85.5 50.5 9.8 85.7
5350112 3.7 3350 112.5 50.5 5.5 68.6
105161 3.7 3600 61.5 51.0 9.9 64.5
805182 3.7 4000 80.5 51.5 8.0 64.5
805264 3.7 3250 64.5 52.0 8.0 58.4
5852101 3.7 3200 101.5 52.0 5.8 50.9
905462 3.7 3250 62.5 53.5 8.9 58.4
905486 3.7 4100 87.0 55.0 9.0 73.7
655590 3.7 4000 90.8 55.3 6.5 72.0
905570 3.7 4000 70.0 55.5 9.2 70.0
6558110 3.7 4200 110.5 59.0 6.6 103.1
606087 3.7 3800 87.0 60.0 6.0 68.6
726090 3.7 5000 91.5 60.0 7.2 89.6
5662107 3.7 5000 107.0 61.5 5.6 90.0
966570 3.7 5000 70.5 65.0 9.6 89.5
656570 3.7 3100 70.5 65.5 6.6 56.2
906576 3.7 4700 76.5 65.5 9.2 84.3
487390 3.7 3650 90.0 73.8 5.0 66.5
407696 3.7 3300 96.5 76.0 4.0 60.7
